如果是没有开启 DMA 功能则可以参考: STM32串口通信实验

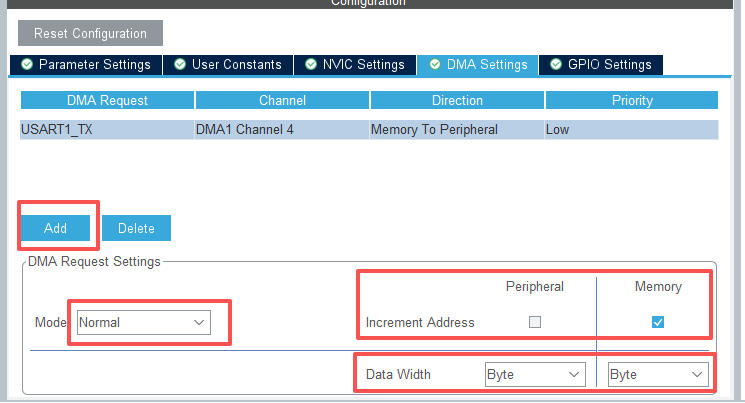

最大的区别是开启 DMA，如下图
然后由 STM32CubeMX 生成代码
在 usart.h中添加
/* USER CODE BEGIN Includes */
#include "stdio.h"
#include "stdint.h"
/* USER CODE END Includes */
...
/* USER CODE BEGIN Prototypes */
#define UART_TX_BUF_SIZE 256 // Size of the ring buffer
void UART_Printf_Init(UART_HandleTypeDef *huart);
/* USER CODE END Prototypes */
...在usart.c
/* USER CODE BEGIN 0 */
static UART_HandleTypeDef *debug_uart = NULL;
static uint8_t uart_tx_buf[UART_TX_BUF_SIZE];
static volatile uint16_t uart_tx_head = 0; // next write position
static volatile uint16_t uart_tx_tail = 0; // next read position
static volatile uint8_t uart_tx_busy = 0; // DMA currently running?
static void UART_StartTxDMA(void)
{
if (debug_uart == NULL) return;
// Nothing to send?
if (uart_tx_head == uart_tx_tail) {
uart_tx_busy = 0;
return;
}
uart_tx_busy = 1;
uint16_t tail = uart_tx_tail;
uint16_t head = uart_tx_head;
uint16_t len;
if (head > tail) {
// Continuous region
len = head - tail;
} else {
// Wrap-around: send from tail to end of buffer
len = UART_TX_BUF_SIZE - tail;
}
if (HAL_UART_Transmit_DMA(debug_uart, &uart_tx_buf[tail], len) != HAL_OK)
{
// If DMA failed to start, clear the busy flag so we can try again
uart_tx_busy = 0;
}
}
static void UART_BufferWrite(const uint8_t *data, uint16_t len)
{
for (uint16_t i = 0; i < len; i++) {
uint16_t next_head = (uart_tx_head + 1) % UART_TX_BUF_SIZE;
// If buffer full: either block, drop, or overwrite.
// Here we simply block until space is available.
while (next_head == uart_tx_tail) {
// Buffer full – wait (simple version; could yield, etc.)
}
uart_tx_buf[uart_tx_head] = data[i];
uart_tx_head = next_head;
}
// Start DMA if not running
__disable_irq(); // short critical section
if (!uart_tx_busy) {
UART_StartTxDMA();
}
__enable_irq();
}
void HAL_UART_TxCpltCallback(UART_HandleTypeDef *huart)
{
if (huart == debug_uart) {
uint16_t sent = huart->TxXferSize; // number of bytes just sent
uart_tx_tail = (uart_tx_tail + sent) % UART_TX_BUF_SIZE;
if (uart_tx_head != uart_tx_tail) {
// More data pending – start next chunk
UART_StartTxDMA();
} else {
uart_tx_busy = 0; // Buffer empty
}
}
}
void UART_Printf_Init(UART_HandleTypeDef *huart)
{
debug_uart = huart;
}
int fputc(int ch, FILE *f)
{
uint8_t c = (uint8_t)ch;
if (debug_uart == NULL) {
return ch; // or EOF
}
UART_BufferWrite(&c, 1);
return ch;
}
/* USER CODE END 0 */在main.c中添加
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_DMA_Init();
MX_USART1_UART_Init();
/* USER CODE BEGIN 2 */
UART_Printf_Init(&huart1);
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
printf("Hello DMA UART\r\n");
HAL_Delay(1000);
}
/* USER CODE END 3 */

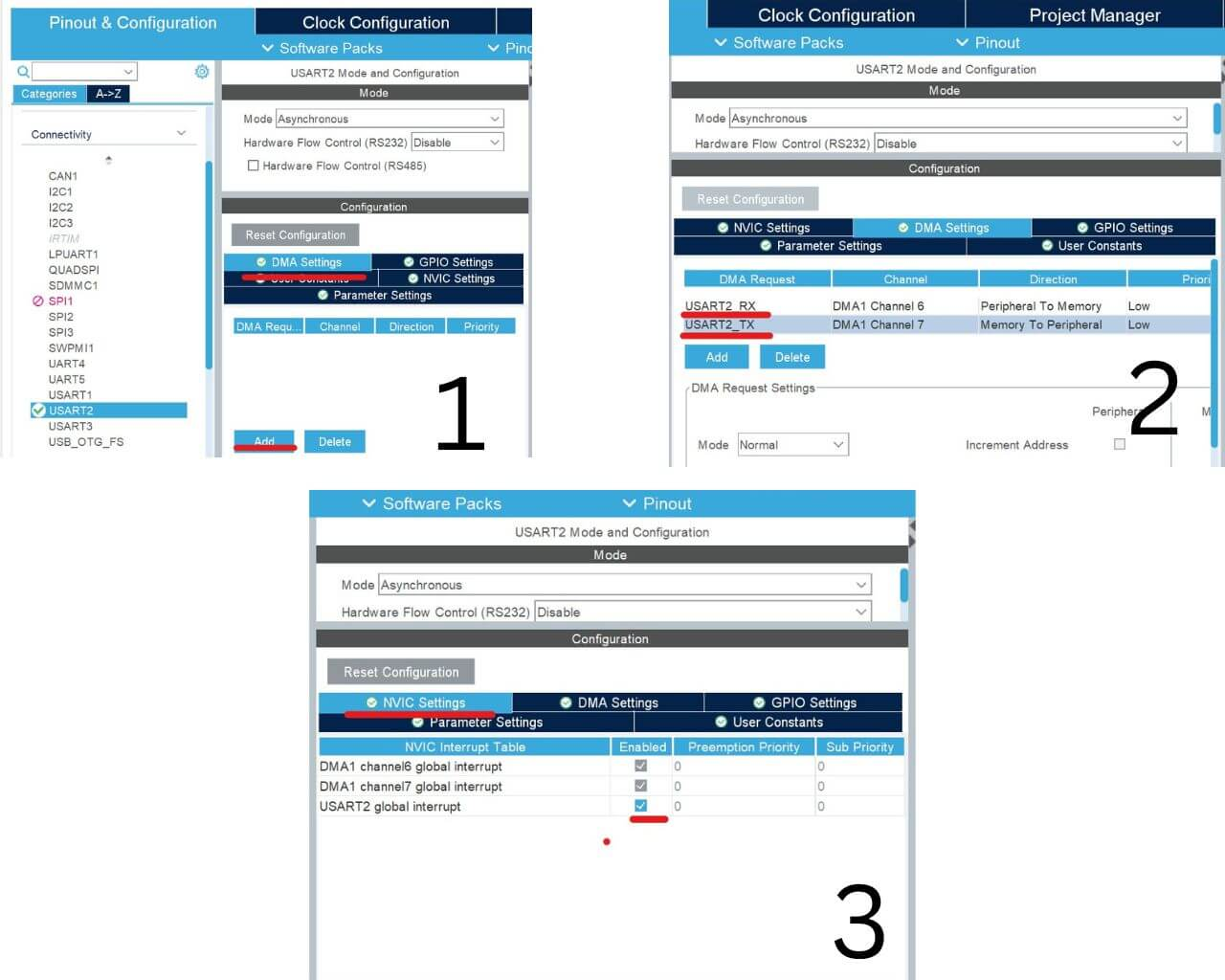

}这里最大的疑惑是为什么使用 DMA 后还需要 UART 中断？最开始 GPT-5.1 给我的方案也是没有开启 UART 中断的，结果串口只接到一个字符 "H"。
后来问了 Gemini-3-Pro 后，它告诉我还是需要开启 UART 中断。以下的它的一些回应：
If you use the STM32 HAL library, the UART Interrupt is mandatory even if you are using DMA. 如果你使用 STM32 HAL 库，即使启用了 DMA，UART 中断也是必需的。
You might think: "If the DMA moves the data, why do I need the UART interrupt?" 你可能会想："既然 DMA 负责移动数据，为什么还需要 UART 中断呢？"
This is a specific design choice in the STM32 HAL Library. Here is the sequence of events when you call HAL_UART_Transmit_DMA:
- DMA Transfer: The DMA moves data from your RAM to the UART Data Register.
- DMA Complete: When the DMA finishes moving the last byte, the DMA Interrupt fires (
DMA1_Channel4_IRQHandler). - The HAL Logic: Inside the DMA interrupt, the HAL library thinks: "Okay, I moved all the data to the UART, but the UART hardware is still shifting the last byte out onto the wire. I cannot say the transaction is 'Complete' yet."
- Enabling UART IT: Consequently, the HAL library enables the UART Transmission Complete (TC) Interrupt inside the DMA Interrupt handler.
- UART Complete: When the final bit leaves the TX pin, the UART Interrupt fires (
USART1_IRQHandler). - Cleanup: Only inside this UART interrupt does the HAL set the handle state to
Readyand call yourHAL_UART_TxCpltCallback.
If you do not enable USART1_IRQHandler:
The DMA finishes, enables the UART interrupt, and then... nothing happens. The CPU never jumps to the cleanup code. The UART handle remains in HAL_UART_STATE_BUSY_TX forever. That is why you only saw one "h" (the buffer filled up, sent once, and never cleared the busy flag).
